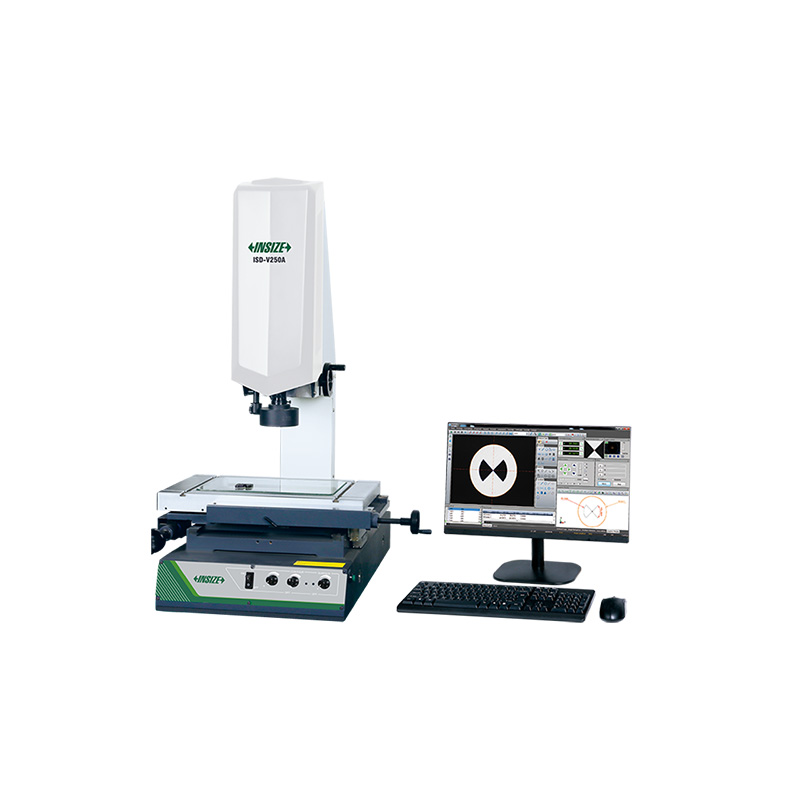

Ручные системы визуального измерения (стандартный тип)
Код: ISD-VxxA/ISD-VxxH
| Код | Диапазон | Точность | Разрешение | Повторяемость | Увеличение | Максимальная нагрузка |
|---|---|---|---|---|---|---|
| ISD-V150A | 150×100×150mm | ≤(2.5+L/100)µm | 0.5µm | 2µm | 29X~184X (on 21.5" monitor) | 20kg |
| ISD-V250A | 250×150×150mm | ≤(2.5+L/100)µm | 0.5µm | 2µm | 29X~184X (on 21.5" monitor) | 20kg |
| ISD-V300A | 300×200×150mm | ≤(2.5+L/100)µm | 0.5µm | 2µm | 29X~184X (on 21.5" monitor) | 20kg |
| ISD-V400A | 400×300×150mm | ≤(2.5+L/100)µm | 0.5µm | 2µm | 29X~184X (on 21.5" monitor) | 20kg |
| ISD-V150H | 150×100×150mm | ≤(2.5+L/100)µm | 0.5µm | 2µm | 29X~184X (on 21.5" monitor) | 20kg |
| ISD-V250H | 250×150×150mm | ≤(2.5+L/100)µm | 0.5µm | 2µm | 29X~184X (on 21.5" monitor) | 20kg |
| ISD-V300H | 300×200×150mm | ≤(2.5+L/100)µm | 0.5µm | 2µm | 29X~184X (on 21.5" monitor) | 20kg |
| ISD-V400H | 400×300×150mm | ≤(2.5+L/100)µm | 0.5µm | 2µm | 29X~184X (on 21.5" monitor) | 20kg |
Ознакомьтесь с полными техническими
характеристиками продукта
